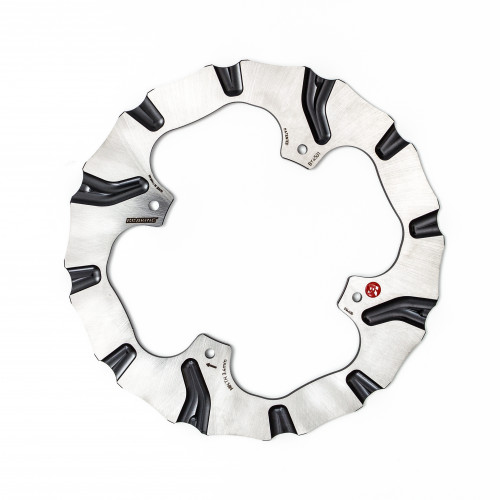

Batfly directional geometry with non round profile
Disc material and construction process: laser cut stainless steel AISI410, heat treated + finished on CNC machines
Improvement of the brake response and modulability. The Batfly system improves the rider’s feeling and the response during the overall braking event and brings the performances at the top of the category
Better cooling effect: thanks to the special grooves on the rotor, represent a great evolution in heat dissipation, due to the area that alternatively is not covered by one of the pads
In this way, when the internal pad touches the disc the external does not and vice versa, so the heat generated on one side can be dissipated inside the “ventilation channel” created between the other side pad and the disc
Better effectiveness of the pads. The Batfly system cleans and re-new the pad surface at each pass on the grooves, maintaining the friction coefficient of the pads at the maximum level, even in the worst environmental condition

Fitment
2017 Honda CRF450RX
2004 Honda CRF450R
2005 Honda CRF450R
2006 Honda CRF450R
2007 Honda CRF450R
2008 Honda CRF450R
2009 Honda CRF450R
2010 Honda CRF450R
2011 Honda CRF450R
2012 Honda CRF450R
2013 Honda CRF450R
2014 Honda CRF450R
2015 Honda CRF450R
2016 Honda CRF450R
2017 Honda CRF450R
2004 Honda CRF250R
2005 Honda CRF250R
2006 Honda CRF250R
2007 Honda CRF250R
2008 Honda CRF250R
2009 Honda CRF250R
2010 Honda CRF250R
2011 Honda CRF250R
2012 Honda CRF250R
2013 Honda CRF250R
2014 Honda CRF250R
2015 Honda CRF250R
2016 Honda CRF250R
2017 Honda CRF250R
2004 Honda CRF230F
2005 Honda CRF230F
2006 Honda CRF230F
2007 Honda CRF230F
2008 Honda CRF230F
2009 Honda CRF230F
2004 Honda CRF250X
2005 Honda CRF250X
2006 Honda CRF250X
2007 Honda CRF250X
2008 Honda CRF250X
2009 Honda CRF250X
2012 Honda CRF250X
2013 Honda CRF250X
2015 Honda CRF250X
2016 Honda CRF250X
2017 Honda CRF250X
2005 Honda CRF450X
2006 Honda CRF450X
2007 Honda CRF450X
2008 Honda CRF450X
2009 Honda CRF450X
2012 Honda CRF450X
2013 Honda CRF450X
2014 Honda CRF450X
2015 Honda CRF450X
2016 Honda CRF450X
2017 Honda CRF450X
2002 Honda CR125R
2003 Honda CR125R
2004 Honda CR125R
2005 Honda CR125R
2006 Honda CR125R
2007 Honda CR125R
2002 Honda CR250R
2003 Honda CR250R
2004 Honda CR250R
2005 Honda CR250R
2006 Honda CR250R
2007 Honda CR250R
2018 Honda CRF450R
2018 Honda CRF450RX
2018 Honda CRF250R
2019 Honda CRF450R
2019 Honda CRF450RX
2019 Honda CRF250R
2019 Honda CRF450R W.E.
2019 Honda CRF250RX
2020 Honda CRF450R
2020 Honda CRF450R W.E.
2020 Honda CRF450RX
2020 Honda CRF250R
2020 Honda CRF250RX
2011 Honda CRF450X
2010 Honda CRF450X
