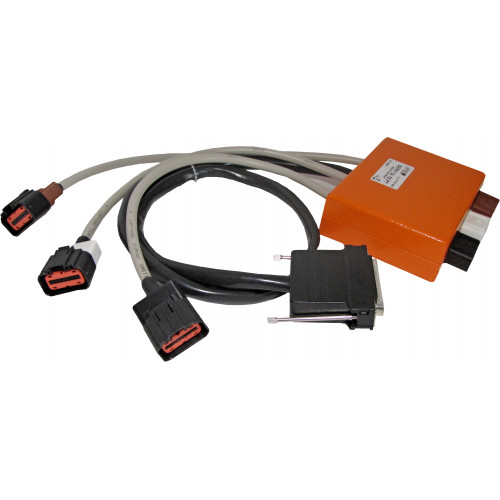

Parallel diagnostics are designed for measuring input and output signals from the electronic fuel injection module (EFI) and other modules. Measurements can be made on running engines. The system consists of a wiring harness adapter and breakout box. The breakout box is inserted between EFI module and motorcycle´s wiring harness so that the system continues to function as normal. Monitoring points for all connector pins of the EFI module are clearly arranged on the breakout box. It is possible to measure signals and waveforms from all systems and actuators. Disconnecting the ECU from the breakout box allows quick and reliable check of the integrity of the wiring harness in respect to continuity, and leakage currents.

Fitment
2018 Harley Davidson FXBB Softail Street Bob
2018 Harley Davidson FXFB Softail Fat Bob
2018 Harley Davidson FXLR Softail Low Rider
2018 Harley Davidson FLSB Softail Sport Glide
2018 Harley Davidson FLHC Softail Heritage Classic
2018 Harley Davidson FLHCS Softail Heritage Classic 114
2018 Harley Davidson FLSL Softail Slim
2018 Harley Davidson FXFBS Softail Fat Bob 114
2018 Harley Davidson FXBR Softail Breakout
2018 Harley Davidson FXBRS Softail Breakout 114
2018 Harley Davidson FLDE Softail Deluxe
2018 Harley Davidson FLFB Softail Fat Boy
2018 Harley Davidson FLFBS Softail Fat Boy 114
2019 Harley Davidson FXDR Softail Power Cruiser
2019 Harley Davidson FXBB Softail Street Bob
2019 Harley Davidson FXLR Softail Low Rider
2019 Harley Davidson FLSL Softail Slim
2019 Harley Davidson FXFB Softail Fat Bob
2019 Harley Davidson FLDE Softail Deluxe
2019 Harley Davidson FLSB Softail Sport Glide
2019 Harley Davidson FLFB Softail Fat Boy
2019 Harley Davidson FLHC Softail Heritage Classic
2019 Harley Davidson FXBR Softail Breakout
2019 Harley Davidson FXBRS Softail Breakout 114
2019 Harley Davidson FXFBS Softail Fat Bob 114
2019 Harley Davidson FLFBS Softail Fat Boy 114
2019 Harley Davidson FLHCS Softail Heritage Classic 114
